*กรุณาโทรเช็คสต็อคสินค้าก่อนสั่ง 0811-444-729 - Model: IK Multimedia iRig Pro DUO
On or Off the grid — you’re powered
There’s nothing worse than getting lost in the creative groove and running out of juice. With iRig Pro Duo, you’ll have three options for power. First, iRig Pro Duo can be powered with 2 AA batteries when connected to an iPhone or iPad. Second, plug in the USB or Micro USB to OTG cables and iRig Pro Duo will be powered by the connected computer or Android device, or the AA batteries. Camped out in the studio? Plug it into the wall with a DC power adapter (not included) for extended recording sessions. Now you can record with confidence knowing full well that your interface is in it for the long haul with you.
Features
- Truly mobile dual input audio interface for iPhone, iPad, Android, Mac and PC
- Simultaneous dual track recording interface for all instruments
- Ultra-compact housing for extreme portability
- Dual identical XLR/TRS combo input jacks
- Dual ultra-low noise studio-quality IK preamps
- Individual input gain controls
- 48V phantom power
- Self-powered (2 AA batteries), device powered or DC power adapter (not included)
- 24-bit AD-DA converters
- Dual 1/4” switchable TRS balanced outs
- 1/8” 3.5mm Headphone out w/ level control
- MIDI IN/OUT jacks

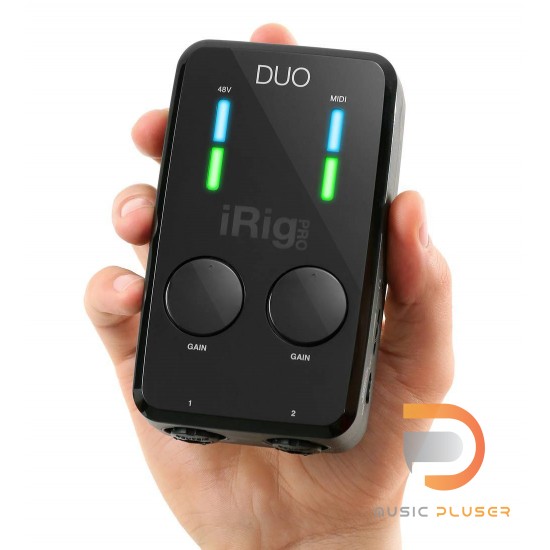

- Ultra-compact housing fits in the palm of your hand
- Includes Lightning, OTG and USB cables (optional 30-pin cable can be used for older iOS devices)
- Designed and made in Italy
Specs
iRig Pro Duo Specifications
Microphone Input
- Microphone Input: 2x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
- Microphone Input Level: from 6 mVpp to 1.4 Vpp
- Microphone Input Impedance: approx 2 kOhms
- Gain Range: 48 dB
- Phantom Power: +48V ± 4V
- Frequency Response:
• from 5 Hz to 21 kHz (-3dB) Gain @ min
• from 30 Hz to 21 kHz (-3dB) Gain @ max - Input Noise: -103 dB(A) Gain @ min
-86 dB(A) Gain @ max
Instrument Input
- Instrument Input: 2x unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground
- Instrument Input Level: from 30 mVpp to 6.9 Vpp
- Instrument Input Impedance: 1 MOhms
- Gain Range: 27 dB
- Frequency Response:
• from 2 Hz to 21 kHz (-3dB) Gain @ min
• from 5 Hz to 21 kHz (-3dB) Gain @ max - Input Noise:
• -104 dB(A) Gain @ min
• -102 dB(A) Gain @ max
Line Output
- Line Outputs: 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground
- Floating Balanced Outputs with automatic level compensation when working in unbalanced mode
- Maximum Output Level: +16 dBu into 600 Ohms balanced load
- Frequency Response: from 10 Hz to 21 kHz (-3dB)
- Output Dynamic Range: 106 dB(A)
- Output Impedance: 150 Ohms balanced
Common
- AD and DA Resolution: 24-bit
- Sampling Rate: 44.1 kHz and 48 kHz
- Power: USB bus power, battery power (2xAA – included), or DC power supply (9VDC, from 500mA up, positive outside – not included)
- Metering: Multicolor LED)
- Size: 75mm/2.95″ x 127mm/5″ x 37mm/1.46″
- Weight: 197.2g/6.96oz (batteries excluded)
- Battery Life:
• Recording – Max load*: 3 hours, 30 minutes (NiMH rechargeable); 45 minutes (Alkaline)
• Playback – Min load**: 10 hours (NiMH rechargeable); 3 hours (Alkaline)
*Max load condition: both inputs connected to two 1,5mA phantom powered loads, input gains set to maximum, outputs set to maximum.
**Min load condition is as follows: music playing, phantom power OFF.
Package includes

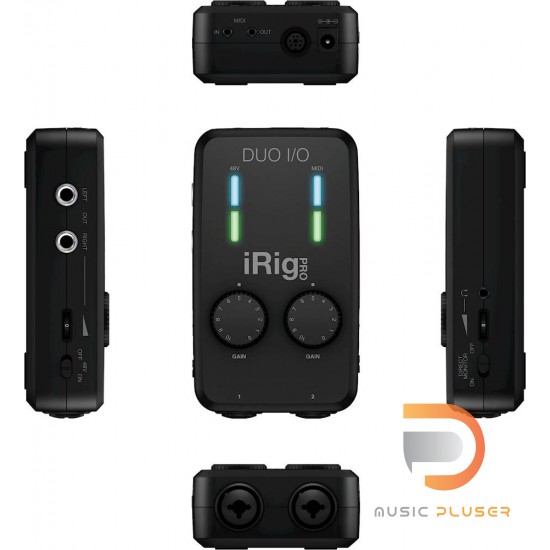

- iRig Pro Duo universal dual channel Audio-MIDI interface
- Lightning to Mini-DIN connection cable (60cm/23.62″)
- Micro-USB-OTG to Mini-DIN connection cable (60cm/23.62″)
- USB to Mini-DIN connection cable (60cm/23.62″)
- 2 x 2.5mm jack to MIDI cable (160cm/63″)
- 2 x 1.5V AA Battery
Dimensions
- Size: 75mm/2.95″ x 127mm/5″ x 37mm/1.46″
- Weight: 197.2g/6.96oz (batteries excluded)
- Lightning to Mini-DIN connection cable: 60cm/23.62″
- Micro-USB-OTG to Mini-DIN connection cable: 60cm/23.62″
- USB to Mini-DIN connection cable: 60cm/23.62″
- 2.5mm jack to MIDI cable: 160cm/63″
Requirements
iOS Devices
Compatible with iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th generation, iPad Pro (9.7-inch), iPad Pro (12.9-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad 4th generation, iPad mini. iOS 6.0 or later is required.
Also compatible with iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus and iPhone 7.
Computers
Mac®: Mac OS X 10.6 or later. One free USB port.
Windows®: Fully supports Windows 10 WASAPI for low latency audio. One free USB port. (ASIO4ALL is required on Windows 7 and 8 for low latency audio. See our FAQ here for further details.)
Android Devices
Compatible with Android devices running Android 5 or later and with USB digital audio capabilities.
