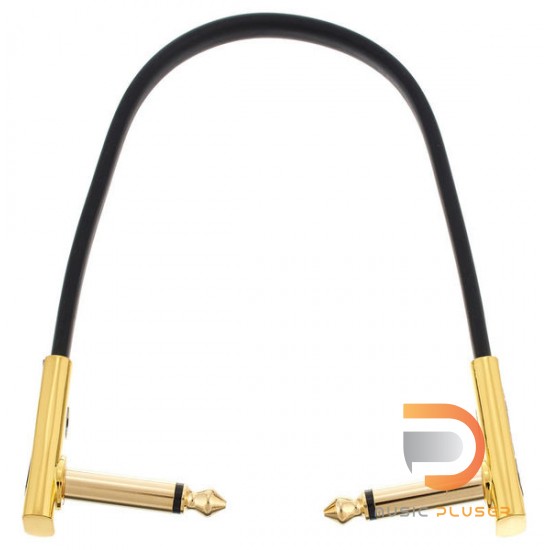

RockBoard Flat Patch Cable Gold 20 CM

Data

• high quality double shielded flat patch cables with rectangular profile
• compact and super flat angled plugs
• gold-plated connectors
• metal plug housings
• flexible copper conductor (20 x 0.12 mm / 36 AWG)
• braided copper shielding (4 x 16 x 0.12 mm / 36 AWG)
• additional aluminum foil shielding
• PE (polyethylene) signal insulation
• PVC cable mantle
• capacitance less than 10 pF/decimeters
• conductor resistance less than 10 mOhm/decimeters
• angled 6.3 mm mono audio plugs
• operating temperature -15º C to +70° C / 5° F to 158° F
• outer dimensions cable (W x H) 7 x 3 mm / 1/4″ x 1/8″ (rectangular)
• outer dimensions plugs (W x H) 12.5 x 7.5 mm / 1/2″ x 5/16″
• black with gold-plated plug housings
• length 20 cm / 7 7/8″
