IK Multimedia iRig MIX

Full Description

Versatile two-channel mixer, ideal for DJs and musicians

The iRig Mix provides you with a portable mixing solution, for musicians on the move. The versatile design means you can connect a wide range of gear including iOS and Android devices, as well as MP3 players, instruments and even microphones. The familiar layout is ergonomic and easy to use with a 3-band EQ on each channel for creating seamless mixes.

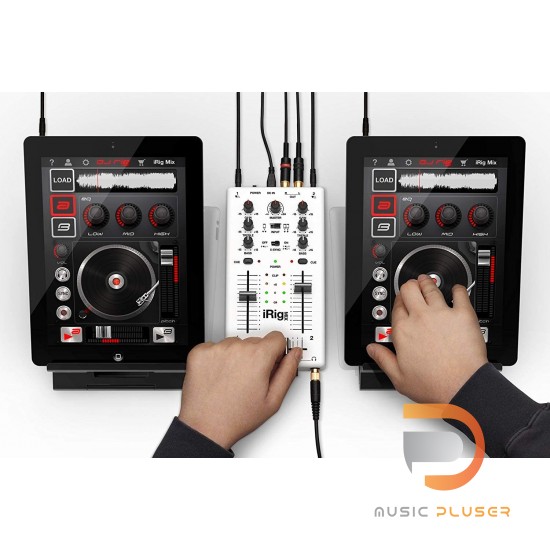

The flexible design allows for a variety of configurations. For example, connect two iPads and launch your favourite DJ app to get mixing within minutes. You can even connect a microphone and your smartphone to either input and record vocals and songs. It can act as a DJ mixer, a PA mixer and even a signal processor thanks to its varied compatibility. You can even use a single device and split it into dual-mono so you can send the device to individual channels for single device mixing.

X-Sync – auto-sync your audio sources

One of the most unique and useful features of the Mix is the X-Sync mode. This custom feature works in combination with the DJ Rig app (free from IK Multimedia. It works by matching the tempo of iOS devices for quick and easy beat syncing.

Compact and highly portable design

Get creative wherever you go. The ultra-compact design makes the iRig Mix perfect for musicians on the move. From house parties to practising at home, you can DJ, sing and play your instrument no matter the setting. The mixer is robust and sleek, meaning it can withstand the rigors of use on the move. The small sized housing can also fit easily within a backpack.

The mixer can be powered via any regular mobile device charger thanks to its low-voltage power supply. It can also be powered via USB battery pack or USB hub power, making it one of the most mobile mixers on the market.

Complete with four FREE music apps

The iRig Mix comes complete with four free apps (available from the iTunes app store). DJ Rig is powerful and versatile DJ mixing app, which also allows you to use the X-Sync button on the mixer. AmpliTube is a highly popular iOS guitar amp and effects app, ideal for processing instruments. VocaLive is a processing app for vocals and GrooveMaker is a loop-based beat and groove making app. These apps allow you to get the most of your mixer straight out of the box.

Features

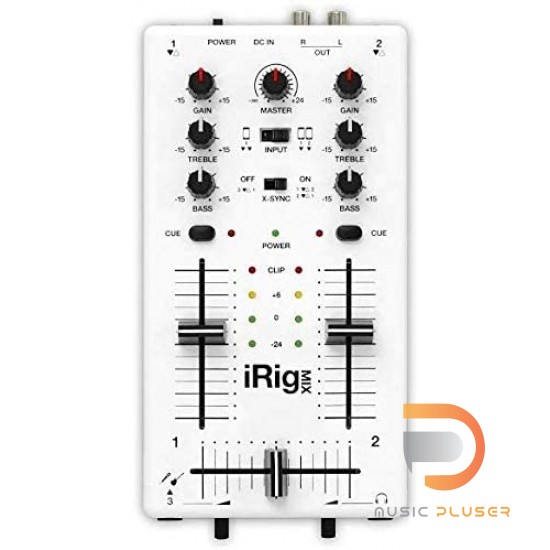

• 2 stereo inputs with gain, bass, treble and volume controls, independent cue on each channel with LED indication and channel cross-fader
• Instrument/microphone/extra input with volume control can be processed by iOS apps (such as AmpliTube, VocaLive)
• Stereo output with RCA connectors, master level and LED meters
• High quality, pristine sound
• Quality headphone output for master or cue monitoring with independent volume control
• Input switch splits Input 1 into dual-mono for use with DJ mixing apps on a single iOS device
• "X-Sync" mode allows auto-sync with any audio source using the included DJ Rig free app
• Can also be powered with battery packs and mobile chargers
• Includes 4 free apps: DJ Rig, AmpliTube, VocaLive, GrooveMaker
• Includes cables and power supply

Specifications

Line Input:

• Frequency response: 20Hz - 20kHz (±2dB)
• SNR: -80dB
• THD+Noise: 0.01
• Nominal level: -10dBV
• Maximum level: 3 Vrms
• Impedance: 47k Ohm
• Socket: 13.5mm stereo / TRRS

Line Output:

• Frequency response: 20Hz - 20kHz (±2dB)
• SNR: -80dB
• THD+Noise: 0.05 (20Hz - 20kHz Bandwidth)
• Nominal level: -10dBV
• Maximum level: 6 Vrms
• Impedance: 200 Ohm
• Socket: RCA

Mic / Hi-Z Input:

• Frequency response: 20Hz - 20kHz (±2dB)
• SNR: -80dB
• THD+Noise: 0.05 (20Hz - 20kHz Bandwidth)
• Maximum level (Min Gain): 3Vrms
• Minimum level (Max Gain): 10mVrms
• Impedance: 1 MOhm
• Socket: 6.35mm mono

Headphones Output:

• Frequency response: 20Hz - 20kHz (±2dB)
• SNR: -80dB
• THD+Noise: 0.05 (20Hz - 20kHz Bandwidth)
• Maximum power: 125mW into 32 Ohms
• Socket: 6.35mm stereo

Controls:

• Low tone controls: ±15 dB @ 80 Hz, shelving
• High tone controls: ±15 dB @ 8 kHz, shelving
• Trim controls: ±15 dB, 0 dB at center

Power Supply:

• USB powered through a micro USB (D TYPE) connector
• Power consumption: 5 Watt typical; 10 Watt with full headphone output

Dimensions:

• 217mm x 110mm x 46mm (L x W x H)

Compatibility

• iPad, iPad 2 and iPad 3
• iPod touch 3, iPod touch 4, iPod touch 5
• iPhone 3GS, iPhone 4, iPhone 4S, iPhone 5
