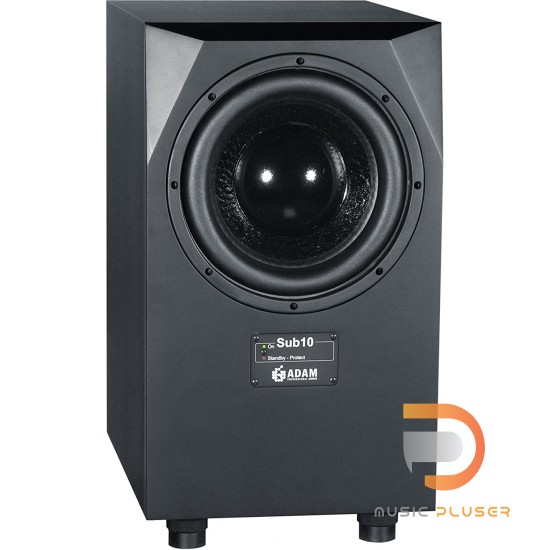

ADAM AUDIO SUB10 MK2
The Sub10 MK2 is a powerful subwoofer designed to extend the low frequency capabilities of any near or midfield monitoring system down to 25Hz.
A sturdy special woofer with extended cone travel and a heavy-duty coil have been optimized for accurate reproduction from a bass reflex enclosure. The down-firing bass reflex tube avoids intrusive ventilation noise because of its generous size and shape. The PWM amplifier produces over 90% efficiency and can handle critical passages without overheating for long periods of time. An additional output allows you to cascade as many subwoofers as needed.
The Sub10 MK2 subwoofer provides a precise combination of low cutoff frequency (-3 dB at 25Hz) and an undistorted high sound pressure level (113dB at 1m).
FEATURES & BENEFITS
PRODUCT FEATURE | BENEFIT TO THE CUSTOMER |
---|---|
Linear bass reproduction down to 25 Hz | Ideal addition to nearfield and midfield monitors |
Maximum Peak sound pressure in 1 m ≥ 113 dB | Powerful, compression-free sound reproduction even at very high sound levels |
High efficiency PWM amplifier | Low-distortion amplification at both low and high volume levels |
Special 10″ woofer with paper diaphragm | Unrestricted bass reproduction for low-fatigue operation even at high volumes |
Easy manual or automatic (de-)activation | If desired, monitoring is possible without the low frequencies |
According to downward working bass reflex tube with generous dimensions and corresponding rounding | Prevention of air turbulence noise |
Upper cut-off frequency is selectable between 50 – 150 Hz | Allows optimal adaptation of the total system on the bass performance of the satellites |
Connectable high-pass filter for the satellite outputs, which blocks signals below 85 Hz |
|
2 years warranty with optional extension to 3 years with the registration of the product | Full repair service if required for 5 years |
TECHNICAL DATA
SUBWOOFER
Number | 1 |
Basket Ø | 10″ (260 mm) |
Voice Coil Ø | 2″ (50 mm) |
Cone Material | Paper |
BUILT-IN AMPLIFIERS
Subwoofer | 1 |
Type | PWM |
Amp. Power RMS / Music | 200 W / 300 W |
INPUT CONNECTORS
Analog | XLR / RCA |
GENERAL DATA
Frequency Response | 25 Hz – 150 Hz |
THD > 60 Hz | ≤1 % |
Max. peak SPL at 1 m | ≥113 dB |
Crossover Frequencies | 50 – 150 Hz |
Input Impedance | 10 kOhm |
Panel | Rear |
Weight | 46.3 lb (21 kg) |
Height x Width x Depth | 22″ (560 mm) x 12″ (300 mm) x 15.5″ (400 mm) |
Warranty | 5 years (2 years warranty plus 3 years optional with product registration) |
Delivery Contents | Power cord, manual |
