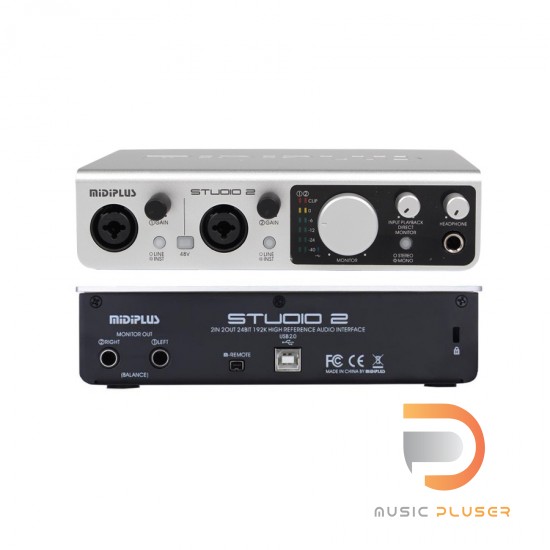

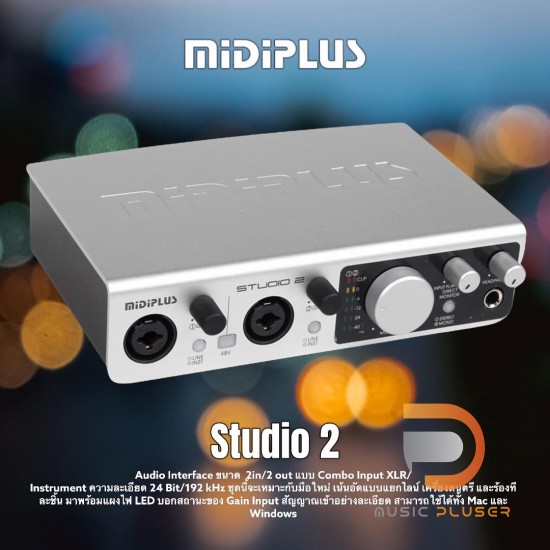

Midiplus Studio 2

Features:
Portable USB audio interface with 24bit/ 192kHz high resolution AD/DA conversion.
Two XLR/ TRS combo inputs with high-quality microphone preamplifier.
Two(left & right) 1/4″(6.35mm) TRS balanced output interfaces.
One 1/4″ (6.35mm) stereo headphone interface with separate volume control knob.
One M-Remote interface for connecting extensible device.
With instrument/ line switches, stereo/ mono switch.
Supports direct monitor control and main output level control.
High speed USB 2.0 bus powered, with 48V phantom power switch.
Compatible with Mac and Windows systems.

Specifications:
Frequency Response: 20Hz-20kHz (±0.1dB)
Sampling Rate: 24bit/ 192kHz
Phantom Power: +48V
USB Cable Length: About 1.5M
Item Size: 18.6 * 11.5 * 4.7cm / 7.3 * 4.5 * 1.9in
Item Weight: 685g / 1.5lb
Package Size: 26.5 * 16 * 8cm / 10.4 * 6.3 * 3.1in
Package Weight: 940g / 2.1lb

Note:
1. Support Windows 7 or above version. Please go to the website: to download STUDIO driver before using the device with Windows system.
2. For Mac system, you can connect the device to the computer and start to use it directly.

Package List:
1 * Audio Interface
1 * USB Cable
1 * Adapter (6.35mm to 3.5mm)
1 * User Manual (English & Chinese)
