Voodoo Lab Pedal Power ISO-5

Voodoo Lab Pedal Power ISO-5

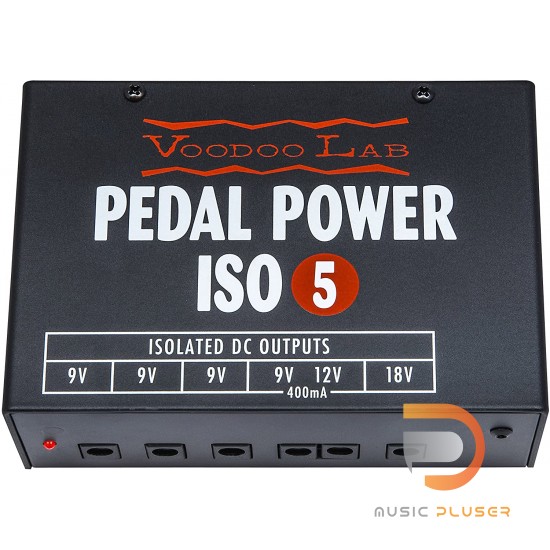

Pedal Power ISO-5 is an isolated power supply for powering guitar pedal effects and accessories. It’s the ultimate compact solution for smaller pedalboards, rack shelves, or even as an additional power supply for larger boards. With five isolated, filtered and regulated output sections, ISO-5 keeps even the most sensitive vintage and boutique analog pedals dead quiet.

Pedal Power ISO-5 includes a high-current output which will properly power modern digital power-hungry effects like those from Eventide, Line 6, and TC Electronic. There’s also a dedicated 18V output for those pedals which need the higher voltage for extra headroom.

Designed to meet the needs of professional users, Pedal Power ISO-5 will provide clean, consistent power, even with the poor AC line conditions often found on stage. Completely isolated output sections eliminate ground loops and unwanted interactions between effects, resulting in lower noise and noticeably improved tone.

Important!
Pedal Power ISO-5 is manufactured to operate from a specific supply voltage. There are three different models, which accept 100V, 120V, or 240V mains. All units sold in North America are for 120V only. You cannot operate a 120V model using 240V power without the correct step down transformer. The supply voltage is marked on the bottom of the unit.

Short Circuit Protection
Every output on Pedal Power ISO-5 is individually short-circuit protected. This means that if you have a short in a power cable, or one of your pedals malfunctions, ISO-5 will turn off the power to only that pedal. All other outputs will continue to function normally with no long-term damage.
