TASCAM : CA-XLR2d-F



อะแดปเตอร์สำหรับไมโครโฟน XLR ที่จะต่อเข้ากับกล้อง FUJIFILM DSLR ที่มีช่อง In-Put มาให้ 2 ช่อง พร้อม Pre-Mic คุณภาพสามารถที่ให้เสียงคมชัด ลดเสียงรบกวน อีกทั้งยังมีฟังฟังก์ชั่น Low Cut และจ่ายไฟ +48V phantom power ได้อีกด้วย



CA-XLR2d-F

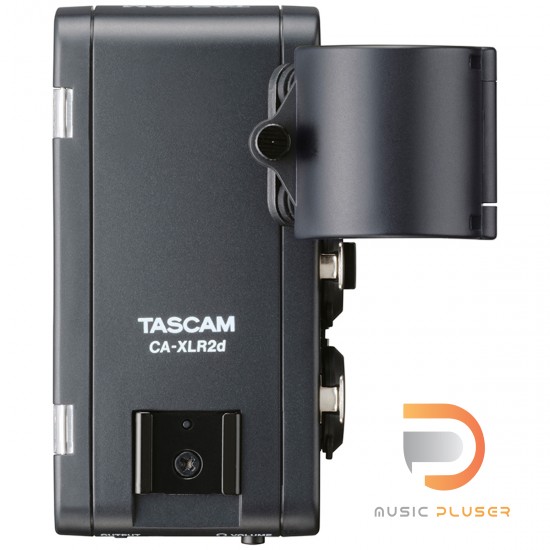

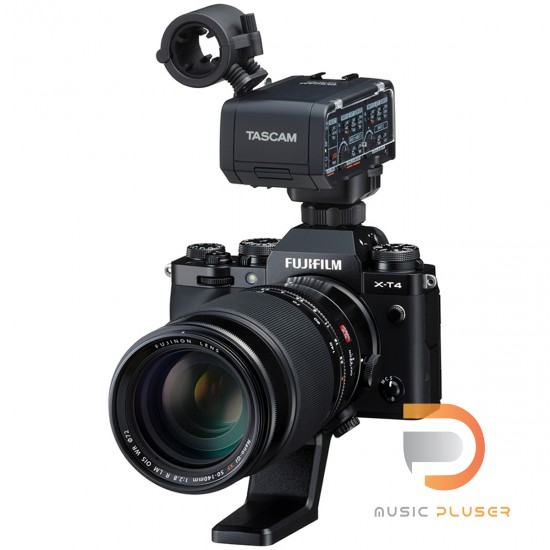

Developed together with FUJIFILM, this unit's hot shoe connection supports and provides a high compatibility with their data communication hot shoe.



Choose the appropriate microphone or input that matches your application. From a single shotgun mic for interviews or dialog, to dual dynamic or condenser mics for stereo imaging, or the entire audio mix fed from the master mixer using the line level capability, CA-XLR2d supports a wide variety of shooting applications.



Because of TASCAM know how and premium AD converters, the CA-XLR2d is all about clean, noise-free, professional audio. It enables high-quality audio and smart voice recording utilizing various specialized brands of audio equipment. By transmitting digital audio directly to the camera via an accessory shoe that supports digital transmission, there is no deterioration in sound quality, but it also frees you from the work of synchronizing images and sound in post production. In addition, the CA-XLR2d is driven by the power supply from the camera, so if you connect it to a compatible camera, you can have compact operation without the need for a dedicated power supply.



CA-XLR2d is equipped with a high-performance microphone preamplifier that can process anything from room tone to explosions and support a wide range of sets and environments. Each input supports microphone / line level switching and + 48V phantom power supply. CA-XLR2d allows input of dynamic microphones, condenser microphones and line-level audio signals from a mixer.



A cold shoe on the top panel expands setting flexibility. The shock mount mechanism is vibration resistant, noise-friendly and allows connection of various microphones. Two XLR/TRS input terminals and one 1/8-inch stereo mini microphone input terminals supports multiple shooting scenarios. CA-XLR2d has the flexibility that adapts to the gear necessary for the job.

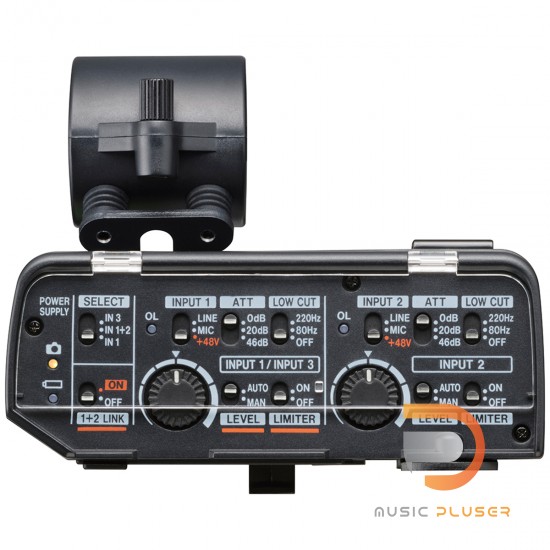

CA-XLR2d includes internal processing such as Auto Level, Low Cut Filter, and Limiter, all using convenient switches.

The CA-XLR2 also supports the 1+2 LINK function, which allows you to adjust the L-R volume simultaneously when recording in stereo.

The premium sound quality is possible because of professional grade 16bit/24bit, 48kHz/96kHz bit rates and sampling frequencies.

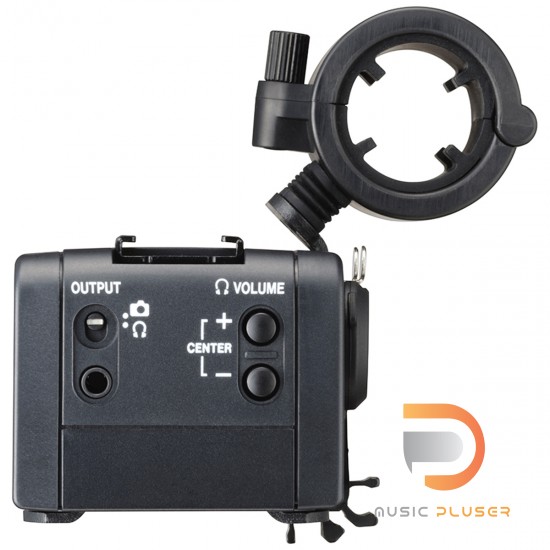

Built-in analog output terminal with headphone mode options that provides latency-free direct monitoring.



CA-XLR2d-AN is compatible with virtually any camera that has an analog audio input. Attach the included battery box (2 AA batteries), and connect the analog output of CA-XLR2d to the microphone input of the camera with an audio cable.

Sampling Frequency : 48k / 96k Hz

Quantization Bit Rate : 16 / 24 bit *Fs & Bitrate are synchronized with the settings of the connected camera

Number of channels : 2 channels



MIC inputs (Balanced)

INPUT 1/2 Jacks

Connectors : XLR-3-31 equivalent (1:GND, 2:HOT, 3:COLD)/6.3mm(1/4") standard TRS jacks Input (Tip:HOT, Ring:COLD, Sleeve:GND) *Phantom power supported by XLR only



MIC IN input switch set to "MIC"

Input Impedance : 2kΩ or higher

Maximum Input Level : +6dBu (ATT setting "46dB") *1

Minimum input level : -60dBu (ATT setting "0dB") *1

Gain range : 66dB



LINE IN input switch set to "LINE"

Input Impedance : 10kΩ or higher

Maximum Input Level : +24dBu *1

Rated input level : +4dBu *1

Gain range : 66dB



MIC inputs (Unbalanced)

INPUT 3 Jack

Connector : 3.5mm(1/8") Stereo mini jack *Support plug-in power

Input Impedance : 2kΩ or higher

Maximum Input Level : +6dBV (ATT setting "46dB") *2

Minimum input level : -60dBV (ATT setting "0dB") *2

Gain range : 66dB

Plug-in power : 2.7V



PHONE / CAMERA output (Unbalanced)

OUTPUT Jack

Connector : 3.5mm(1/8") Stereo mini jack

Output level : 0.29Vrms (Fixed,OUTPUT setting "CAMERA") - 0.5Vrms (Output volume setting at maximum、OUTPUT "HEADPHONE")

Headphone working impedance : 16 to 250Ω



Power : 2 AA batteries (alkaline, NiMH or lithium-ion) - Supplied through accessory shoe of compatible camera

Power consumption : 2.0W (maximum)

Dimensions : 88.2(W) × 119.1(H) × 110.0(D)mm (not including protrusions)
